MICROPHONE»RODE»Rode RodeLink Filmmaker Kit»(new)

ID: 48323
  • Warranty: 24
  • Color: Black
  • Accessories: yes
  • Wireless: yes
  • Lavalier Microphone: yes
4-9 work day
Quantity:
Price: 386.60 369.99 €
  • Series II, 2.4GHz digital transmission
  • 128-bit encryption
  • Up to 100 metres range*
  • OLED display (on receiver)
  • One button pairing
  • Three level gain control
  • AA battery or USB powered
  • Includes broadcast lavalier microphone
  • Two year extended warranty when you register your microphone

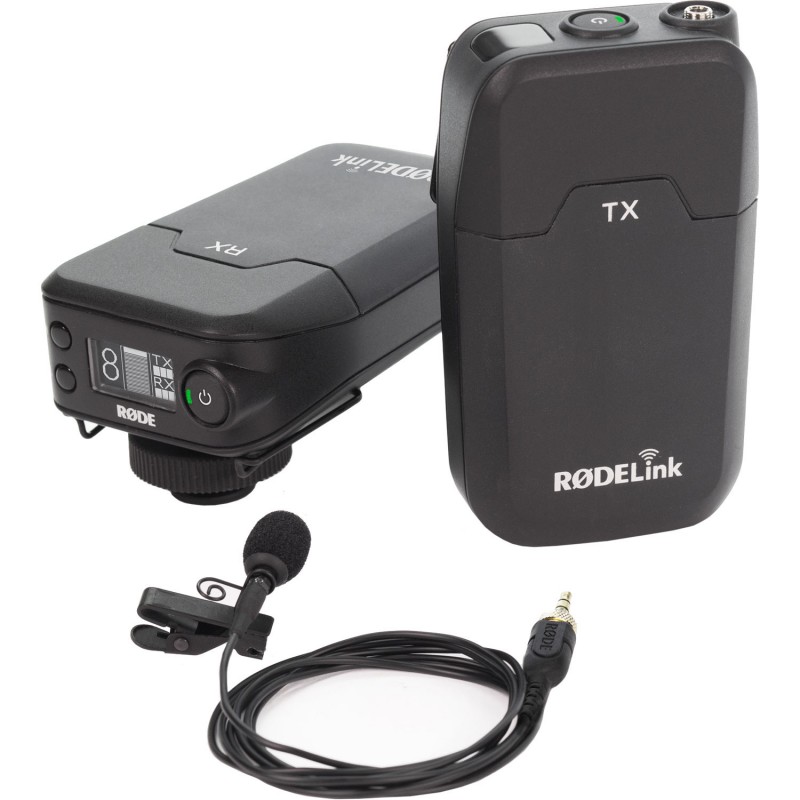

RØDELink represents the next generation of digital wireless systems. Using a Series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres* (over 100 yards). The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RØDE has included an omnidirectional lavalier microphone in the kit to provide the highest possible audio reproduction quality.

* range estimations based on optimal environment

Visit the RØDELink feature page






RØDELink Filmmaker Kit Specifications


Transmission type 2.4GHz Fixed Frequency Agile System
System dynamic range 112dB
Range (distance) Up To 100m
Frequency range 35Hz - 22kHz
Maximum output level 1v Rms (2.8v P-p)
Max input signal level 1v Rms (2.8v P-p)
Max latency 4ms

Receiver (RX-CAM)

Power source 2 X AA Battery Or MicroUSB
Antenna Internal
Output connection 3.5mm TRS Locking Jack Socket - Dual Mono
Output impedance 300Ω
Dimensions 111mm X 65mm X 52mm
Weight 190gm
Transmitter (TX-BELT)

Power source 2 X AA Battery Or MicroUSB
Antenna Internal
Input connection 3.5mm TRS Locking Jack Socket
Input impedance 10kΩ
Dimensions 111mm X 65mm X 40mm
Weight 190gm
Lavalier

Acoustic Principle Permanently Polarized
Active Electronics JFET impedance converter
Capsule 0.10"
Address Type End
Frequency Range 60Hz - 18kHz
Output Impedance 3000Ω
Maximum SPL 110dBSPL
Maximum Output Level 189.0mV
Sensitivity -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted) 25dB-A
Weight 1.00gm
Dimensions 12.00mmH x 4.50mmW x 4.50mmD
