Video Tripods, Supports & Rigs
Video Rigs»9.Solutions»9.Solutions C-Pan Arm»(new)

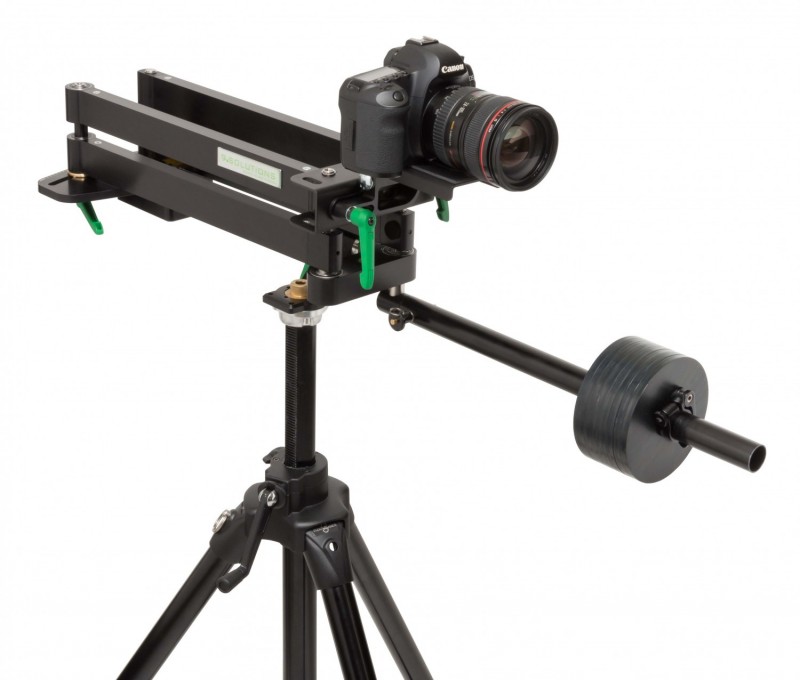

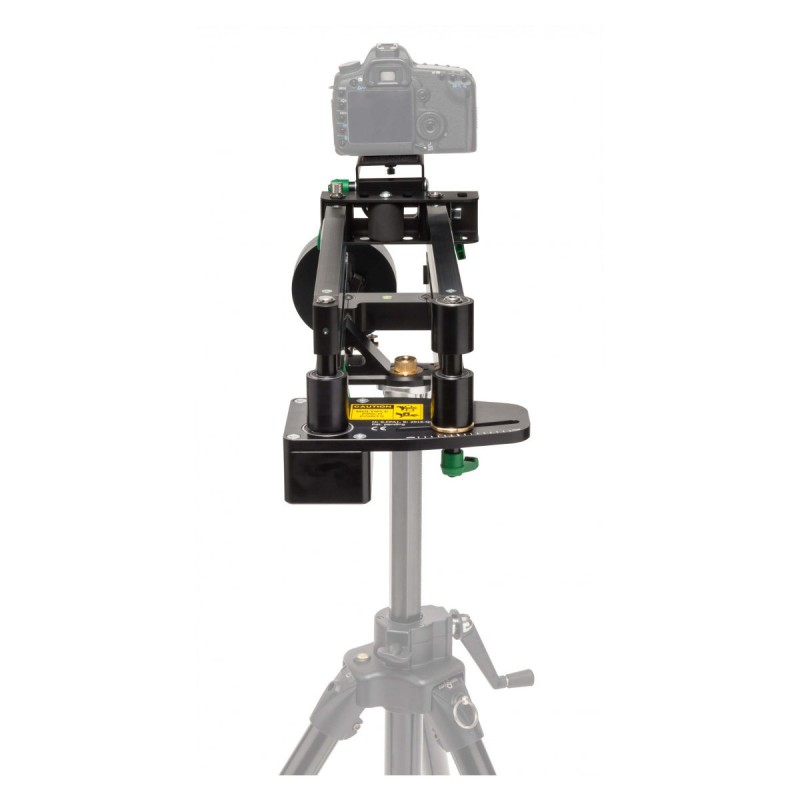

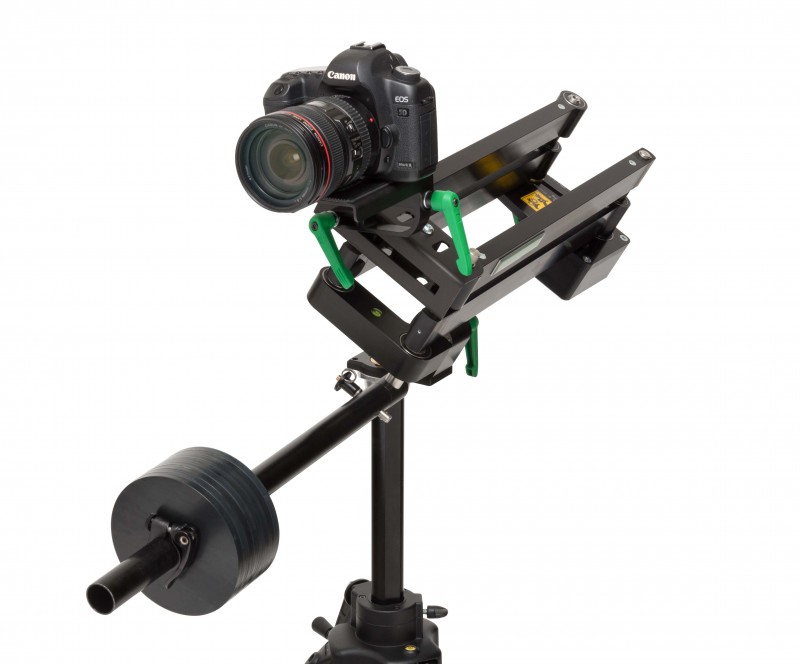

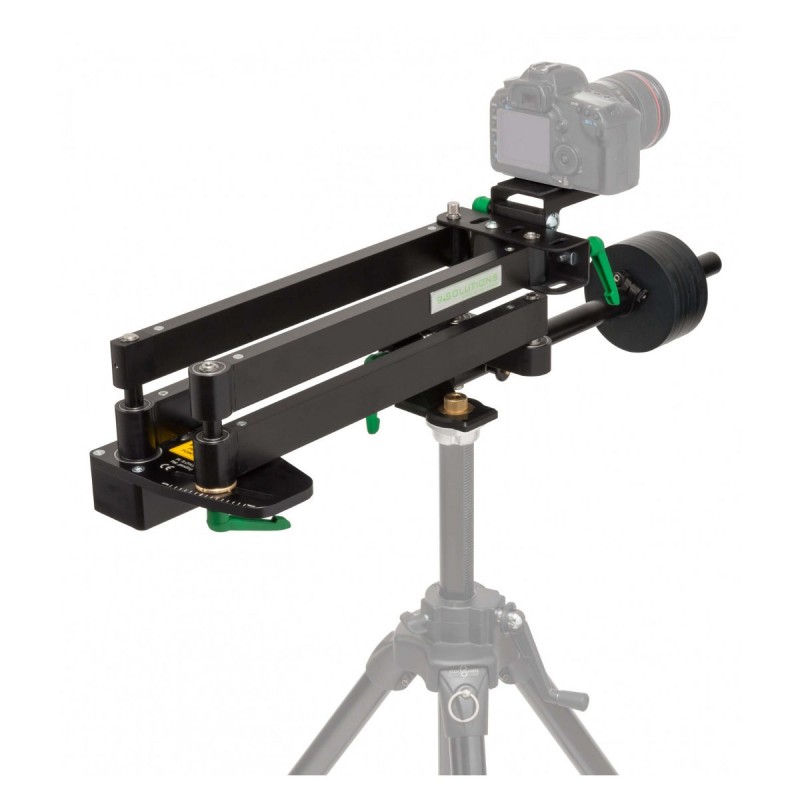

The C-pan arm is a very unique camera guide contraption that mechanically can move a camera in a variety of different paths; straight pan, outward curve, inward curve, horizontally, vertically or at a sloped angle or even forward or backward moves.
The camera is always set to move with whatever move the arm makes i.e.:
if the arm moves in an outward shaped curve, then the camera will stay directed towards the centre of the curve and if the arms are set for a smaller radius curve, then the camera adjusts accordingly to stay pointed at the centre.
Through positioning its arms at different angles to each other, the C-pan arm can be set to move in a virtually infinite number of curves.
When making a straight pan, the arm functions as a traditional straight-track dolly slider, but without the tracks, where it can pan in a range of 3 1/2 times its folded length (which is approx. 55 cm).

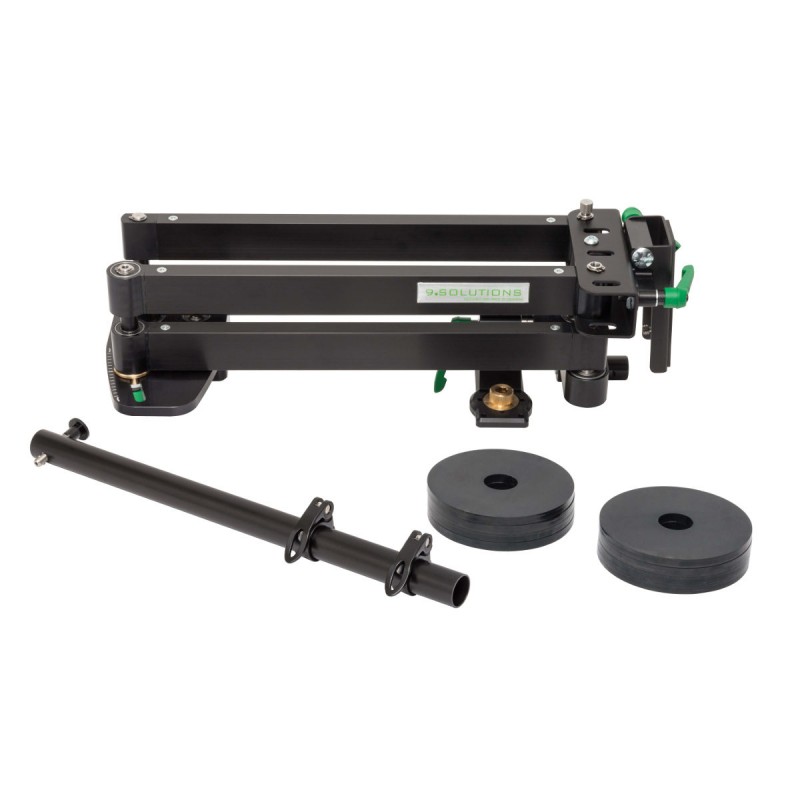

The C-pan arm comes with dumbbells which can be used to counter weigh vertical movements and/or to smoothen and stabilise horizontal moves.
Part Number – 9.CPA1
The camera is always set to move with whatever move the arm makes i.e.:
if the arm moves in an outward shaped curve, then the camera will stay directed towards the centre of the curve and if the arms are set for a smaller radius curve, then the camera adjusts accordingly to stay pointed at the centre.
Through positioning its arms at different angles to each other, the C-pan arm can be set to move in a virtually infinite number of curves.
When making a straight pan, the arm functions as a traditional straight-track dolly slider, but without the tracks, where it can pan in a range of 3 1/2 times its folded length (which is approx. 55 cm).
The C-pan arm comes with dumbbells which can be used to counter weigh vertical movements and/or to smoothen and stabilise horizontal moves.
Part Number – 9.CPA1
Horizontal Load: 17 lb / 8 kg
Vertical Load: 13 lb / 6 kg
Weight (Body): 11 lb / 5 kg
Weight (Dumbbells): 13 lb / 6 kg
Pan Range (Vertical and Horizontal): 55 in / 140 cm
Curve Radius (Outward): 59 in / 1.5 m
Tripod Mount: 3/8-16″ Female
Camera Plate Mount: 1/4″-20 and 3/8″-16
- Krāsa: black
- Profesionāļiem: yes
- Ražotājs: 9.Solutions
- Priekš video: yes
- Gimbal tipa galva: yes
- Garantija: 24
- Video Rigs: yes
