UHF transmission with 48UHF channels
· Ideal for ENG / EFP, DSLR Video
· Broadcast-Quality Sound
· 6 Hours of Continuous Operation
· Operation range can reach up to 100m
· Powered by one 2 x AA batteries for both transmitter and receiver
· Includes an omnidirectional Lavalier Mic
· includes a carrying case
· Also includes:

1) a 3.5mm (1/8 ") TRS connector
2) XLR plug connector

The  BOYA BY-WM6  is a UHF wireless system designed to work with a DSLR camera, camcorder, PC and more.

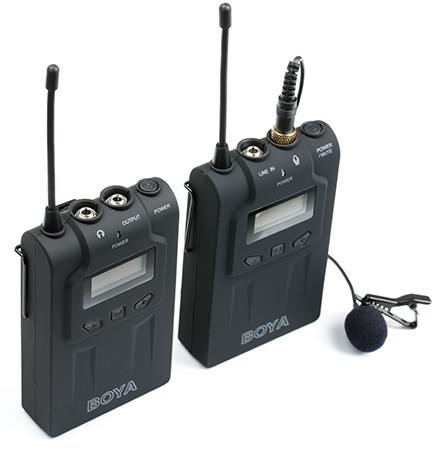

　　The  BY-WM6 system  features a bodypack transmitter, a camera-mount receiver, and an omnidirectional Lavalier microphone. The receiver is built with mic and headphone output jacks. The bodypack transmitter includes a MIC jack and LINE IN jack.




　　SPECIFICATION

　　• RF modulation: GFSK (Frequency Shift Keying Gauss)

　　• Carries frequency range: 576MHz-599MHz

　　• Frequency Response: 60Hz-15kHz ± 3dB

　　• Signal / Noise: 74dB or more

　　• Distortion: 0.1% or less (32Ω, 1 KHz output 65mW)

　　• RF output level: 2 mW

　　• Earphone output level: 32Ω, 65mW

　　• Reception Sensitivity: -30dB +/- 3dB / 0dB = 1V / Pa at 1kHz

　　• Audio Input Connector: 3.5mm mini jack

　　• Operation range: 100m (300 ')

　　• Power requirements: Two (2) AA batteries

　　• Power Consumption: Transmitter: 2x1.5V / 120 mA

　　Receiver: 2x1.5V / 120 mA

　　• Battery life: Transmitter: Approx. 3.0 hours

　　Receiver: Approx. 3 hours

　　• Dimensions:

　　Transmitter: 60mm x 86mm x28mm (W / H / D)

　　(2:36 x 3.3 x 1.1 inches)

　　Receiver: 60mm x 86mm x41mm (W / H / D)

　　(2:36 x 3.3 x 1.61 inches)

　　• Weight:

　　Transmitter: 136g (4.37oz) (Without battery)

　　Receiver: 152g (4.89oz) (Without battery)

Package List:
1 * Transmitter with belt clip
1 * Receiver with belt clip
1 * omni-directional Lavalier
1 * 3.5mm stereo mini plug cable
1 * XLR output cable
1 * Microphone holder clip
1 Windscreen *
1 * shoe mount adapter
1 * Storage Box
1 * User manual (English)
