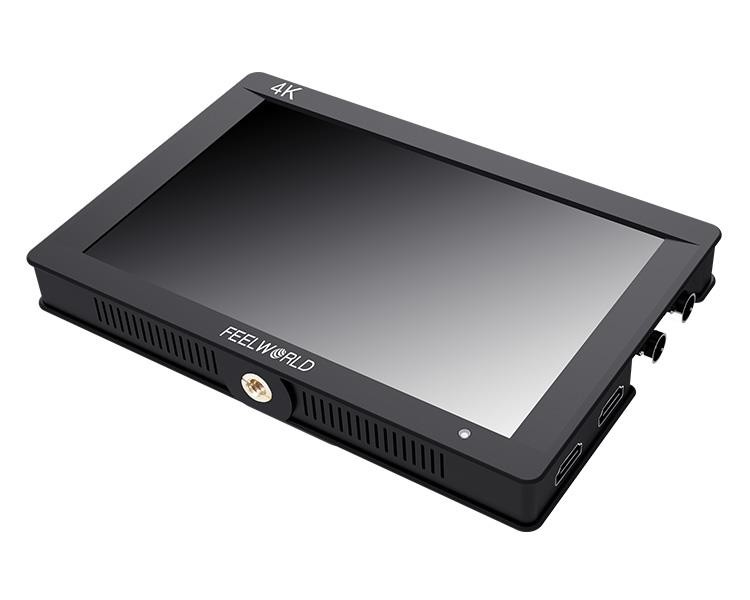

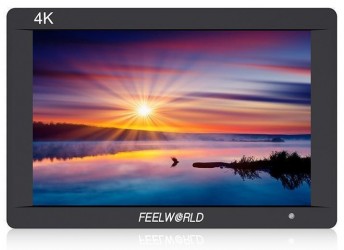

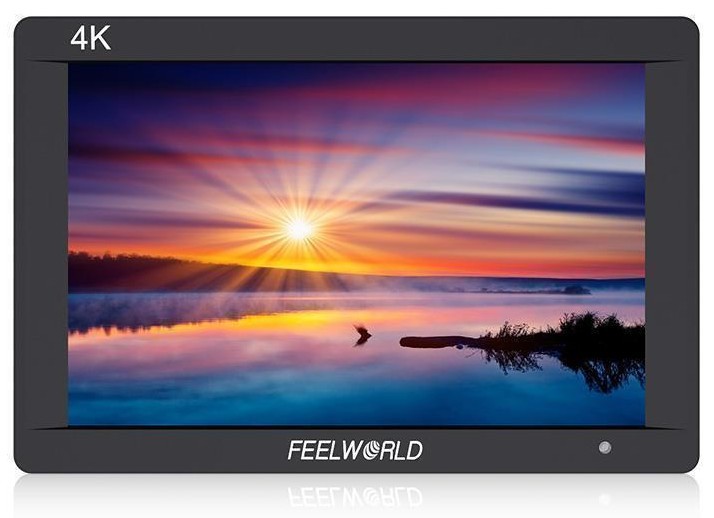

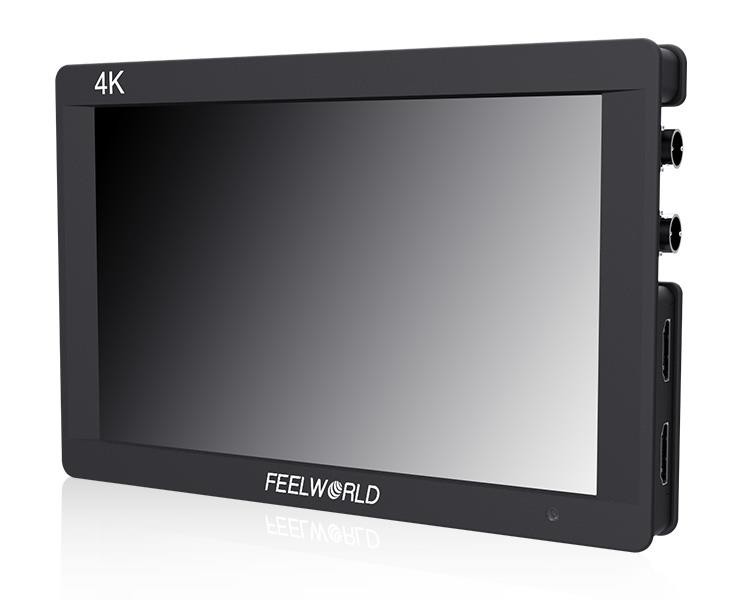

FEELWORLD 4K 7" F7S HDMI SDI MONITOR (new)
7 inch lightweight field monitor with high resolution and contrast, which is a 4K HDMI or SDI signal may run - so on and off.
The monitor has a resolution of 1920 x 1200 with a contrast of 1200: 1, with a viewing angle of 80 ° / 80 °, and is super compact having a thickness of only 20mm.
|
Specification |
|||
|
Description |
FEELWORLD 7" IPS 1920x1200 SDI 4K HDMI On-camera Monitor |
||
|
Model |
F7S |
||
|
Link |
|||
|
Screen size |
7" IPS |
||
|
Display Colors |
16.7M (8 bit) |
||
|
Resolution |
1920x1200 pixels |
||
|
Dot pitch |
0.07875 (H) x 0.07875 (W) (mm) |
||
|
Aspect Ratio |
16:10 |
||
|
Brightness |
450cd / m 2 |
||
|
Contrast |
1200: 1 |
||
|
Backlight |
LED |
||
|
Viewing Angle |
80°/80°(L/R) 80°/80°(U/D) |
||
|
Input |
HDMI, SDI |
||
|
Output |
HDMI, SDI |
||
|
Audio |
Stereo Headphone, Speaker(built-in) |
||
|
SDI Support Format |
480i / 576i |
||
|
720p (60 / 59.94 / 50/30/29/25/24 / 23.98) |
|||
|
1080i (60/59.94/50)
|
|||
|
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |
|||
|
HDMI Input/ Output Support Format |
480i / 576i / 480p / 576p |
||
|
1080i (60/59.94/50) |
|||
|
720p (60 / 59.94 / 50/30/29/25/24 / 23.98) |
|||
|
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |
|||
|
4K UHD 3840 × 2160p (30 / 29.97 / 25/24 / 23.98Hz); 4096 × 2160p (24Hz) |
|||
|
Power Consumption |
? 9W |
||
|
Input Voltage |
DC6.5 ?24V |
||
|
Power Connector |
DC |
||
|
Battery Plate |
F970 (Standard); D28S/D54, LP-E6, U60 (Optional) |
||
|
Operating Temperature |
- 20 ? ? 55 ? |
||
|
Storage Temperature |
- 30 ? ? 65 ? |
||
|
Install Way |
1/4"-20 Thread Socket (bottom) |
||
|
Unit Size |
180Lx120Hx20.5D (mm) |
||
|
Unit Weight |
445g/475g (With F970 Battery Plate) |
||
|
Advanced Features |
|||
|
*Histogram |
*Check Field (Red, Green, Blue, Mono) |
||
|
*Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) |
*Image Flip (H, V, H/V) |
||
|
*False Colors |
*Image Freeze |
||
|
*Zebra Exposure (1-100IRE adjustable) |
*Color Temperature Adjustment |
||
|
*Embedded Audio |
*Nine Grid (Zoom one of the images to realize the full screen) (Nonsupport in 4K input) |
||
|
*Camera Mode |
*Zoom (4X, 9X, 16X) (Nonsupport in 4K input) |
||
|
*Anamorphic Mode (1.3X, 2.0X, 2.0X MAG) |
*Aspect Ratio (Nonsupport in 4K input) |
||
|
*Center Marker |
*Pixel to Pixel (Nonsupport in 4K input) |
||
|
*Safe Area (80%, 85%, 90%, 93%, 96%, 2.35:1) |
*Zoom All (Nonsupport in 4K input) |
||
|
*Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1) |
*U/D Zoom (Nonsupport in 4K input) |
||
|
*Marker Color (Red, Green, Blue, White, Black) |
*L/R Zoom (Nonsupport in 4K input) |
||
|
Standard Accessory |
Optional Accessory |
|
|
|
HDMI to Mini HDMI Cable |
LP-E6 Battery Plate |
|
|
|
Hot Shoe Mount |
D28S PBattery Plate |
|
|
|
F970 Battery Plate |
U60 Battery Plate |
|
|
|
Manual |
Power Adapter |
||
| Color | black |
|---|---|
| Warranty | 24 |
| Displey Size | 7" |
| Full HD | |
| 4K | |
| HDMI | |
| Monitor | |
| Display Resolution | 1920 x 1080 |
